Product Description

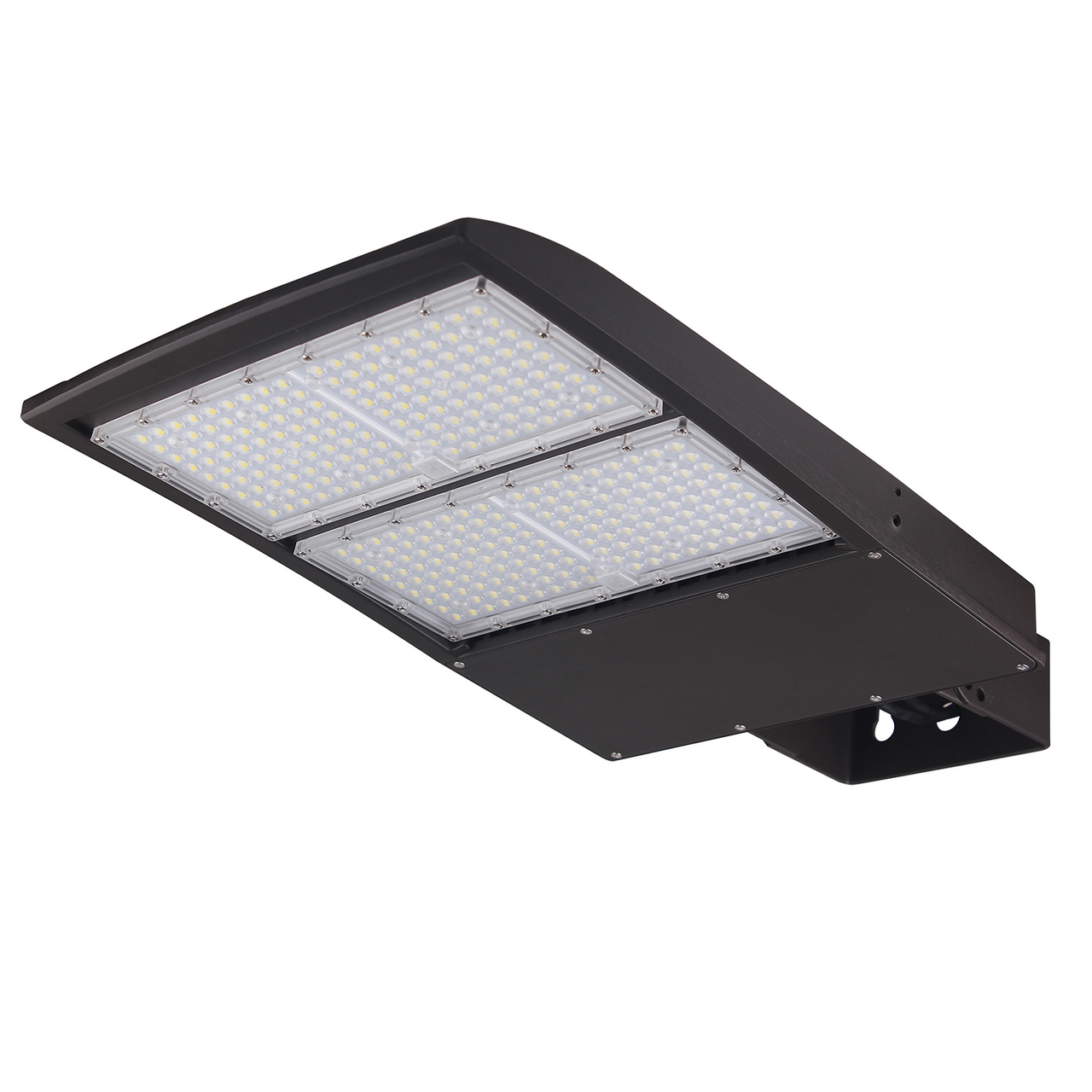

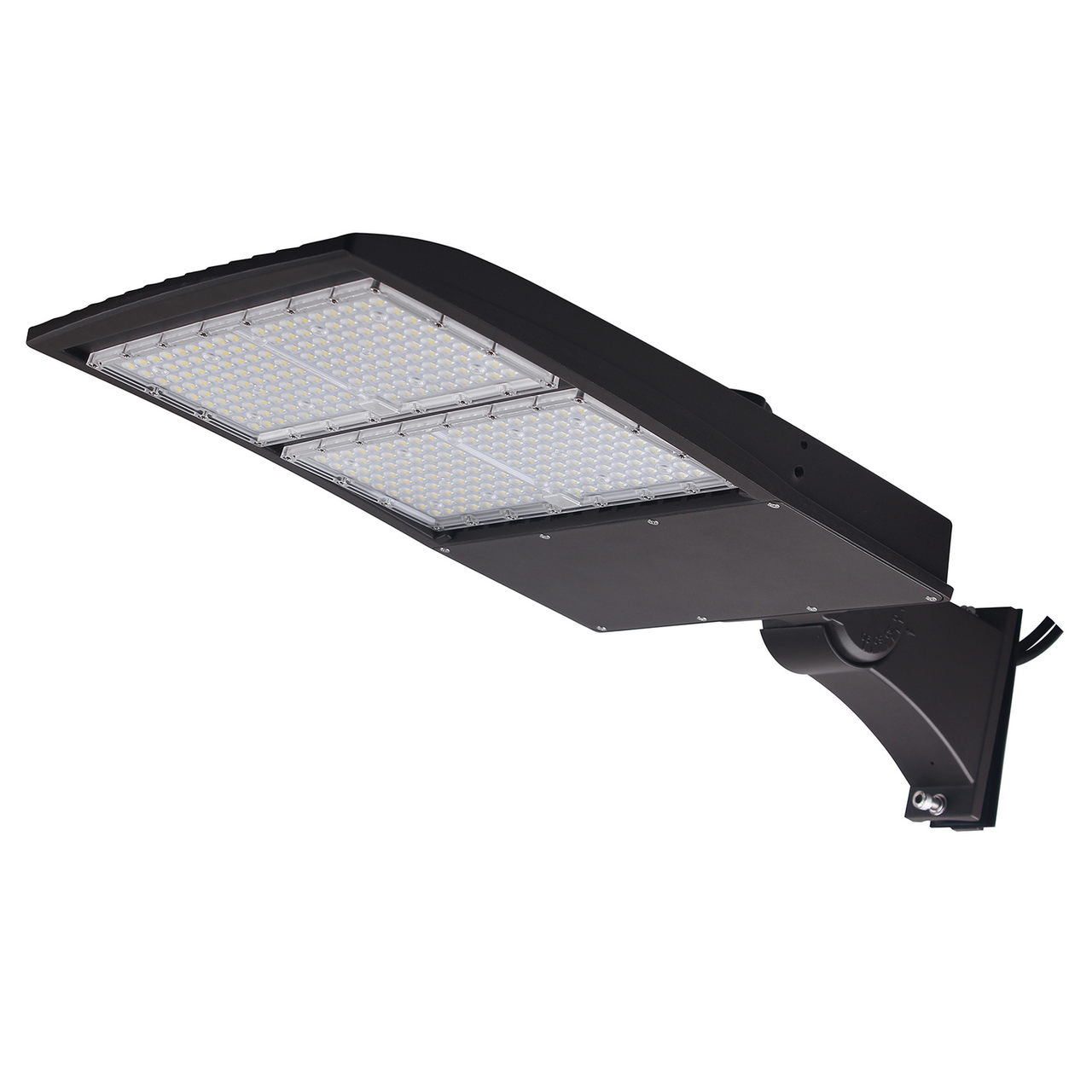

300 Watt LED Area Light
The SBC8B-200W-120V-50K Series luminaires offer traditional Dusk to Dawn features with softened edges for a versatile look that complements many applications. High-performance, energy-efficient solution for local, collector, and major roadways, the MDD05 series uses breakthrough LEDs and precision-engineered optics to provide exceptional illumination while also saving energy.
- 28,000 Lumens
- 26.8 L x 13.3 W x 3.80 H
- Rugged one-piece, die-cast aluminum housing secures the thermally conductive LED panel and electrical chamber
- Low profile, 3G vibration-rated compact design minimizes wind load requirements.
- Housing is completely sealed against moisture and environmental contaminants.
- IES Type III
- 5000 K (70 CRI).
- Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
- For the ultimate level of spill light control, an optional house-side shield accessory can be field or factory-installed.
- The optics can conform to the dark sky requirement.
- Universal 120-277 VAC
- Standard with 1-10V dimming driver(s)
- THD: ≤20%
- Power Factor: ≥90%
- Optional occupancy sensor
- Optional Photocell
- Ambient operating temperature -40˚ C to 45˚ C (-40℉ to 113℉).
- Suitable for mounting heights ranging from 26-50’ in area lighting applications
- Adjustable Slip filter, direct mounts, trunion mounts bracket for easy installation.
- The design can be operated by one person to install the whole lamp
- Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
