Product Description
Housing
-
Premium powder-coat, aluminum, bronze housing.
Electrical
-
Operating temperature (ambient): -40°C to 40°C (-40°F to 104°F).
-
Universal 120-277V AC voltage (50-60Hz) is standard.
-
0-10VDC dimming drivers is standard.
-
Input transient surge protection = 4kV.
-
Power factor > 0.90.
-
Total Harmonic distortion < 20%.
Optical System
-
Glass lens.
-
5000k (cool white) color temperature.
-
9,000 nominal lumens, 82W.
-
Long-life LEDs provide 83,000 hours of operation with at least 70% of initial lumen output (L70), and 22,000 hours with at least 90% of initial lumen output (L90)*.
-
Beam angle 2H2V distribution.
-
LED color maintenance < -0.0007 chromaticity shift (Δu’v’) over the initial 6,000
hours of operation.
-
Color rendering index > 70.
Mounting
-

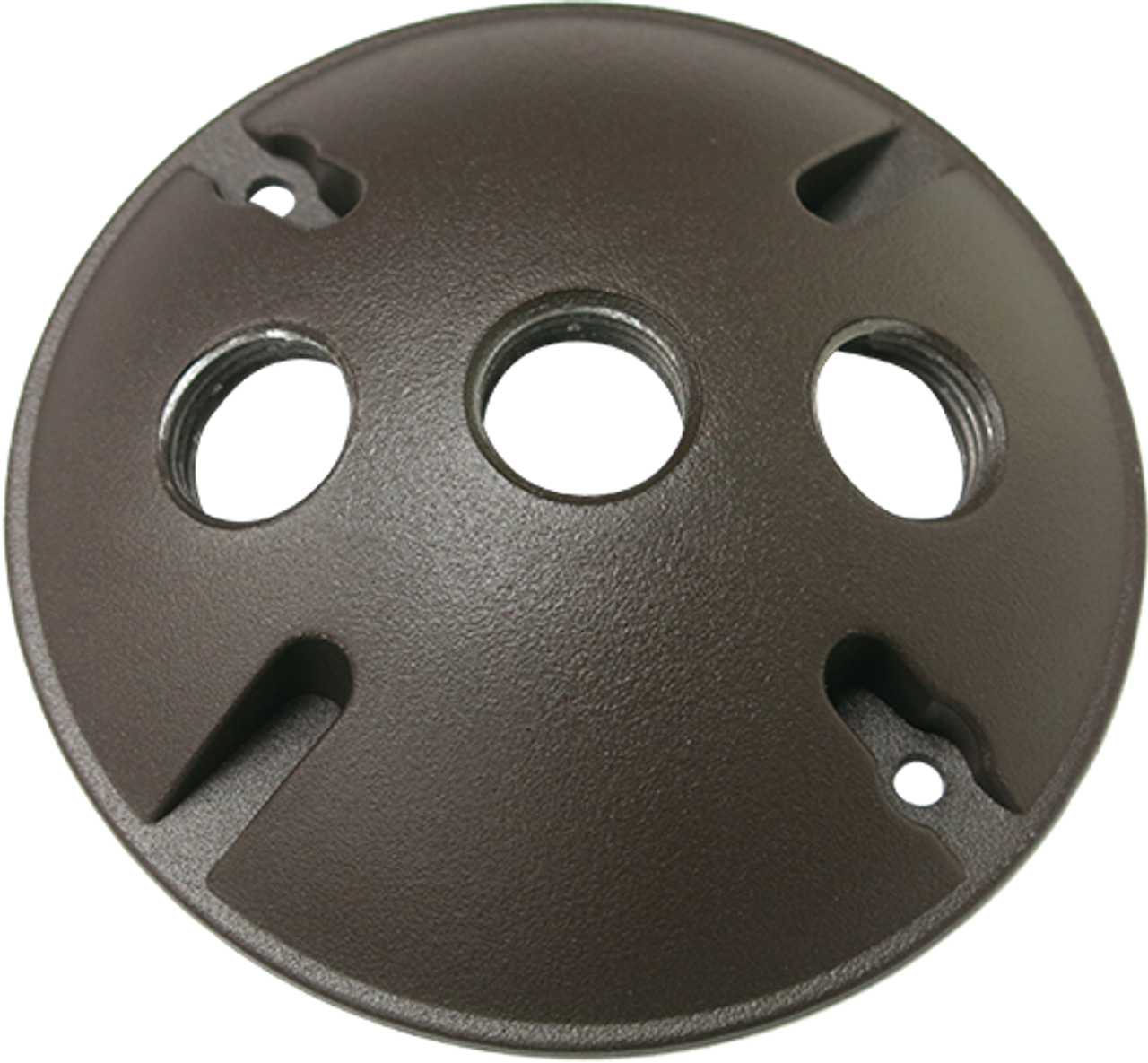

Knuckle mount kit is standard (Fit 1/2“ NPT).
-
Optional Line Voltage Ground Stake (Sold separately)
-
Easy installation in new construction or retrofit.
Code Compliance
-
cULus listed for wet locations.
-
Complies with FCC part 15, class A.
-
IP66 rated for ingress protection.
