Product Description
Housing
-
Premium powder-coat, aluminum, dark bronze housing.
Mounting
-
Knuckle mount kit is standard (Fit 1/2“ NPT).
Electrical
-
Operating temperature (ambient): -40°C to 45°C (-40°F to 113°F).
-
Universal 120-277V AC voltage (50-60Hz) is standard.
-
Built-in photocell.
-
0-10VDC dimming drivers is standard.
-
Input transient surge protection = 4kV.
-
Power factor > 0.90.
-
Total Harmonic distortion < 20%.
Optical System
-
Polycarbonate frosted lens.
-
Field-selectable 3000k(warm white), 4000k (neutral white) and 5000k (cool white) color temperatures*.
-
Tri-lumen selectable delivers 3,000 to 4,500 nominal lumens*.
-
Long-life LEDs provide 151,000 hours of operation with at least 70% of initial lumen output (L70)， and 45,000 hours with at least 90% of initial lumen output (L90)**.
-
Beam angle 3H3V distribution.
-
Optional Line Voltage Ground Stake
-

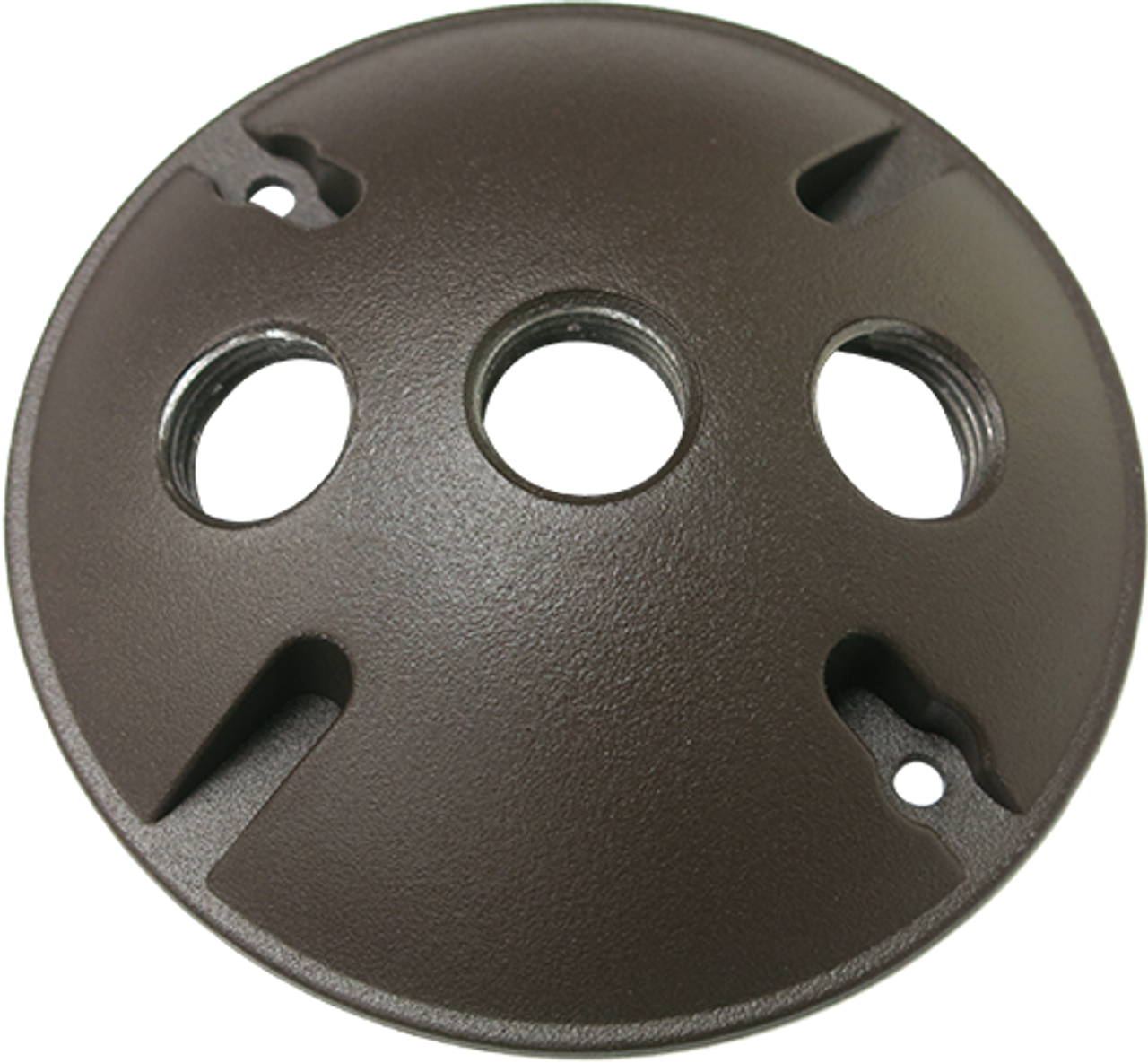

Optional Round Canopy Mounting Plate
-
cULus listed for wet locations.
-
Complies with FCC part 15, class A.
-
IP65 rated for ingress protection.
Warranty
-
5-year warranty on all electronics and housing.
-
Color rendering index > 70.
* Default kelvin temperature 4000k and highest lumen output.
**L70 & L90 hours are IES TM-21-11 calculated hours.
