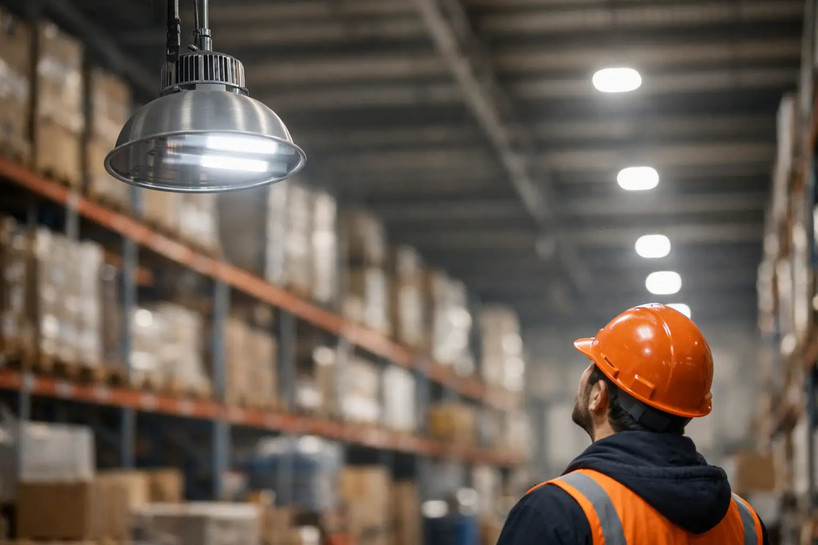

A flickering high bay over a pick aisle is more than an annoyance. Warehouse light flickering can reduce visibility around forklifts, slow receiving and shipping operations, trigger maintenance calls, and indicate an electrical problem that should not be ignored. The right fix depends on whether the issue is isolated to one fixture, limited to one circuit, or affecting a larger section of the facility.

For warehouses with older fluorescent high bays, the likely cause may be a lamp, ballast, or poor socket connection. For LED high bays and linear fixtures, the driver, dimming system, voltage supply, or fixture compatibility is more often at fault. Start with a safe diagnosis instead of replacing fixtures at random.

Identify the Flicker Pattern First

Before an electrician opens a fixture or a maintenance team orders replacement parts, document when and where the flicker occurs. A fixture that flashes only at startup has a different failure path than one that flickers continuously after operating for several hours.

If a single fixture flickers while nearby fixtures on the same row operate normally, the issue is usually local to that fixture, its driver, lamp, socket, or branch connection. If multiple fixtures flicker at the same time, look upstream at the circuit, switching equipment, occupancy sensor, lighting control, panel connection, or incoming power quality.

Pay attention to the operating conditions. Does flickering begin when the loading dock doors are open on cold mornings? Does it happen only when a forklift charger, conveyor, compressor, or other large motor starts? Does it occur when fixtures dim in response to daylight or occupancy controls? These details help separate a fixture failure from a supply or control issue.

A phone video can help document intermittent behavior, but it is not a substitute for electrical testing. Some flicker is not visible to the camera, and a camera's frame rate can make normal LED output appear to pulse. Use the video as a record of timing and location, then verify the source with qualified personnel and appropriate test equipment.

Common Causes of Warehouse Light Flickering

Failing LED drivers

An LED driver converts building power into the controlled current the LEDs require. When it begins to fail, the fixture may pulse, flicker after warming up, dim unexpectedly, or cycle on and off. Heat is a common contributor, especially in high-bay fixtures installed close to warehouse ceilings where ambient temperatures can rise.

Driver failures are also more likely when fixtures are operated outside their listed voltage range, exposed to repeated power surges, or installed in locations with poor ventilation. If a driver is replaceable, match its output current, output voltage range, input voltage, dimming type, and physical fit. Replacing it with a driver that is merely similar can shorten fixture life or create a control problem.

For older or lower-cost integrated LED fixtures, replacing the complete fixture may be more practical than sourcing a driver. Compare labor, lift access, downtime, warranty coverage, and the availability of an exact replacement before deciding.

Loose wiring or poor connections

Vibration from dock operations, overhead doors, equipment, and building movement can loosen connections over time. A loose line, neutral, ground, connector, wire nut, or fixture terminal can create intermittent flicker and heat at the connection point.

This is not a condition to leave for the next scheduled relamp. De-energize the circuit and have a qualified electrician inspect the fixture junction box, whips, branch-circuit connections, panel terminations, and any damaged conductors. Signs such as discoloration, a burnt odor, melted insulation, tripped breakers, or a buzzing fixture call for immediate attention.

Voltage drop, unstable voltage, or circuit loading

Long warehouse runs can expose a weak branch circuit design. When voltage drops below what the fixture driver needs, LED high bays may flicker, cycle, or fail to start reliably. The problem may show up at the end of a run, particularly when many fixtures, battery chargers, or motor loads operate at once.

A qualified electrician should measure voltage at the panel and at the affected fixture while the load is active. This identifies whether the issue is a loose neutral, undersized conductor, overloaded circuit, failing breaker, or an upstream power-quality concern. Do not assume a fixture replacement will correct a building-side voltage problem.

For replacement projects, verify whether the facility uses 120-277V or 347-480V service before ordering. A fixture with a universal 120-277V driver is not suitable for a 480V circuit. High-voltage warehouse locations need fixtures specifically rated for that input range.

Incompatible dimmers, sensors, and lighting controls

Many modern high bays offer 0-10V dimming, occupancy sensing, daylight harvesting, or networked controls. These features reduce energy use when specified and installed correctly, but incompatible components can cause flicker. Common examples include using a line-voltage dimmer with a fixture designed for 0-10V control, connecting dimming leads incorrectly, or adding a sensor that cannot handle the fixture load.

A quick field test is to bypass the control temporarily, following safe electrical procedures, and run the fixture at full output. If flickering stops, inspect the control wiring, low-voltage dimming leads, sensor settings, and compatibility documentation. Never tie the purple and gray 0-10V control wires together unless the fixture instructions specifically call for it.

Controls also need the right commissioning settings. An occupancy sensor with a very low standby setting, aggressive daylight threshold, or short time delay may look like a fixture is malfunctioning when it is simply responding to its programmed mode.

Fluorescent lamps, ballasts, and cold temperatures

Facilities still using T5, T8, metal halide, or other legacy high-bay systems face a different set of causes. Fluorescent lamps can flicker at end of life, when lamp pins are oxidized, when sockets lose tension, or when a ballast is failing. Cold warehouse areas and unheated loading zones can make fluorescent startup and lamp performance worse.

Replace lamps in matched sets where practical, using the correct lamp type and ballast-compatible specification. If lamps are near end of life and ballasts are failing across an area, an LED retrofit or complete LED high-bay upgrade can reduce recurring maintenance. The best path depends on fixture condition, ceiling height, operating hours, and whether existing housings can accept a listed retrofit solution.

A Safe Troubleshooting Sequence

Start by confirming the scope. Note the fixture model, location, circuit number, voltage, control type, and the time or condition that triggers flicker. Check whether the affected fixture is part of a group controlled by a sensor, contactor, photocell, or lighting panel.

Next, isolate power before opening any fixture or junction box. Warehouse lighting is often mounted at heights that require lifts, trained operators, fall protection planning, and a clear work area below. Lockout/tagout procedures should be used where required by the facility's safety program.

Once the circuit is safely de-energized, inspect for loose connectors, damaged wiring, moisture intrusion, failed lamps, darkened ballast compartments, and overheated driver housings. Then restore power only when covers are secure and use electrical testing to verify voltage and control signals. This sequence helps prevent a simple fixture issue from becoming an exposure to energized conductors or an elevated-work accident.

When Replacement Is the Better Fix

Replacing one driver makes sense when the fixture is otherwise in good condition, the driver is available, and the repair can be completed without repeated lift costs. Replacing a full fixture is often the better decision when several units of the same age are failing, housings are damaged, output no longer meets task-lighting needs, or the existing fixtures lack useful options such as selectable wattage, selectable color temperature, or integrated occupancy sensing.

For a typical warehouse, specify replacement high bays around the actual application rather than copying the old wattage. Consider mounting height, aisle width, rack layout, target foot-candles, voltage, beam distribution, ambient temperature, and whether the fixture will use sensors or 0-10V controls. A wide distribution may suit open storage areas, while a more focused distribution can improve light placement in narrow aisles.

Also consider surge protection. Warehouses with frequent switching loads, outdoor feeder exposure, or variable power conditions may benefit from fixtures with stronger surge ratings or separately installed surge protective devices. It is a small specification detail that can protect a larger lighting investment.

Last Stop Lighting can help commercial buyers compare LED high bays, replacement lamps, drivers, sensors, and application-specific fixture options when a repair turns into a project purchase.

Prevent Flicker Before It Disrupts Operations

A lighting maintenance plan should include periodic checks of fixture operation, control settings, drivers, wiring connections, and electrical panels. Keep a record of fixture model numbers and installation dates so recurring failures are easier to spot. When a warehouse expands or adds charging stations, automation equipment, or new production loads, review lighting circuits as part of the electrical change.

Treat flickering as useful information. A prompt, methodical inspection can restore safe light levels now and help prevent the next failure from happening over an active aisle, dock door, or critical work area.
