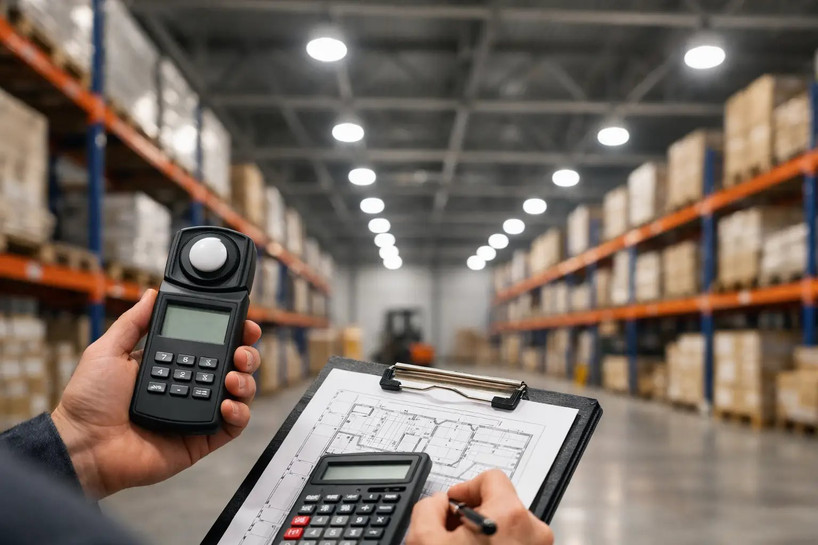

A warehouse lighting calculation should start with the work happening below the fixtures, not with a wattage number from a product listing. A receiving dock, bulk-storage aisle, packing station, and high-rack picking area can occupy the same building while requiring very different light levels, beam distributions, and mounting strategies. Getting the calculation right helps prevent dark aisle ends, excessive glare, underlit work surfaces, and an expensive fixture change after installation.

What a Warehouse Lighting Calculation Must Account For

The basic goal is straightforward: deliver enough usable light to the work plane while controlling energy use, glare, shadows, and long-term maintenance. In most warehouse applications, the work plane is measured at floor level for travel aisles or at the height of the task surface for packing, labeling, and inspection work.

Foot-candles are the measurement used most often in US commercial specifications. One foot-candle represents one lumen distributed over one square foot. That relationship gives buyers a useful starting formula:

Required lumens = target foot-candles × area in square feet ÷ utilization and maintenance factors

The formula is only a first-pass estimate. Fixture lumens do not all reach the work plane. Mounting height, beam pattern, racking, wall reflectance, fixture spacing, dirt accumulation, and lumen depreciation all affect delivered light. A warehouse with tall storage racks is especially likely to need a photometric layout rather than a simple area calculation.

Set the Target Foot-Candle Level by Task

There is no universal foot-candle requirement for every warehouse. A low-traffic bulk storage area may operate effectively around 10 to 20 foot-candles, while general picking and order fulfillment commonly needs 20 to 30 foot-candles. Detailed packing, sorting, assembly, quality control, and label reading may call for 30 to 50 foot-candles or more.

These are planning ranges, not a substitute for an owner specification, local code requirement, insurer direction, or task-specific safety standard. If forklift operators must read rack labels at speed, employees inspect small parts, or the facility runs overnight shifts, a higher target can be justified. On the other hand, specifying task-area light levels across every square foot of a high-bay storage facility can waste energy and create uncomfortable brightness.

Use zoning when the operation varies. High-output LED high bays can cover active pick modules and loading areas, while lower-output fixtures, occupancy controls, or reduced fixture density may fit inactive storage zones.

Start With Accurate Building Dimensions

Measure the actual illuminated area, then separate it into functional zones. Do not assume that the building’s gross square footage is the only number that matters. Mezzanines, offices, enclosed storage rooms, staging areas, battery charging stations, loading docks, and exterior door aprons may need separate fixture types and calculations.

For a simple open warehouse, multiply length by width. A 200-foot by 100-foot floor is 20,000 square feet. At a preliminary target of 20 foot-candles, the theoretical requirement is 400,000 lumens at the work plane.

That does not mean ordering 400,000 fixture lumens. Light losses must be included. If the combined coefficient of utilization and light-loss allowance is estimated at 0.60, divide 400,000 by 0.60. The preliminary fixture lumen package becomes approximately 667,000 lumens.

This figure gives the project team a starting point for fixture quantity and output. For example, fifteen fixtures producing about 45,000 delivered lumens each provide roughly 675,000 total initial lumens. Whether fifteen fixtures are correctly located is a separate question, and usually the more consequential one.

Use Mounting Height, Not Ceiling Height

Mounting height is the distance from the fixture to the work plane. A high bay installed below roof trusses, ductwork, or a structural grid may be several feet lower than the roof deck. If the target is a packing bench at 36 inches above the floor, measure to that elevation rather than to the concrete.

As mounting height increases, the same fixture spreads light across a larger area but produces fewer foot-candles at the floor. A narrow distribution can put more light down long warehouse aisles, while a wide distribution can work well in open staging or bulk-storage areas. Neither is automatically better. The rack arrangement and fixture location determine the correct optic.

A common mistake is selecting high-lumen fixtures solely because the ceiling is high. A high-output wide-beam fixture may create bright rack tops and weak vertical illumination on labels. In racked storage, aisle optics or carefully aligned linear fixtures can produce better usable visibility with fewer glare complaints.

Factor in Layout, Racks, and Surface Reflectance

A lumen calculation treats the room like an empty box. Warehouses are rarely empty boxes. Tall pallet racks block and redirect light, suspended conveyors create shadows, and dark rack uprights absorb light that would otherwise reflect into the space.

Fixture rows should generally follow the working geometry. In narrow aisle warehouses, center fixtures over aisles or use an optic designed to push light lengthwise through the aisle. In wide open spaces, use a regular grid and verify uniformity near walls, dock doors, and the outer rows of fixtures.

Reflectance also changes results. White ceilings and light-colored walls improve the amount of reflected light in a space. Dark deck ceilings, black racking, and unpainted concrete absorb more light and may require more fixture lumens or tighter spacing. The calculation should use conservative assumptions if finishes may change, but it should not ignore reflectance altogether.

Uniformity matters as much as average foot-candles. An average of 25 foot-candles can still leave unsafe dark spots if fixtures are placed too far apart. A photometric plan shows point-by-point levels and helps identify low areas before material is ordered. Request one when the facility has high racks, irregular floor plans, selective rack aisles, conveyors, or demanding inspection tasks.

Choose Fixtures Based on Delivered Performance

LED high bays are often the primary fixture for warehouses with mounting heights of roughly 15 feet and above. UFO high bays are compact and commonly available with selectable wattage and selectable color temperature. Linear high bays can suit wider distribution needs, continuous rows, and spaces where the fixture form factor supports the layout.

Compare fixture lumen output, not just input watts. Two 150-watt LED high bays can have substantially different lumen packages, optics, driver performance, and thermal design. Review voltage compatibility as well. Many commercial fixtures support 120-277V, while facilities with 347V or 480V service need compatible drivers or a different electrical approach.

For general warehouse work, 4000K or 5000K color temperature is commonly selected because it supports visibility and a clean industrial appearance. Higher color temperature is not a replacement for adequate foot-candles, and excessively cool light can feel harsh in employee areas. Consider color rendering when workers need to distinguish wire colors, product condition, labels, or packaging.

Apply a Realistic Maintenance Factor

New LED fixtures do not maintain their initial output forever. Drivers age, LEDs gradually depreciate, lenses collect dust, and industrial environments may introduce vapor, dirt, or airborne contaminants. The maintenance factor accounts for this expected reduction so the installation remains adequate after years of operation.

The appropriate allowance depends on the fixture, operating hours, cleaning schedule, ambient temperature, and environment. A clean conditioned warehouse can use a less conservative assumption than a dusty fabrication or distribution environment. Do not offset a poor layout by simply oversizing every fixture. Extra output may increase glare and energy consumption without correcting coverage gaps.

Controls should also be included in the project plan. Occupancy sensors, daylight harvesting near skylights, and networked controls can reduce operating costs, but sensors must be aimed and programmed for forklift and pedestrian activity. Aggressive timeout settings can leave an active aisle unexpectedly dim, particularly in tall-rack locations where sensor line of sight is limited.

Verify the Plan Before Ordering

Before purchasing, confirm the floor plan, mounting height, voltage, fixture mounting method, rack layout, target foot-candle levels, and any emergency or hazardous-location requirements. Check whether existing branch circuits support the new load and whether sensor, dimming, or emergency backup options are required for the application.

A reliable warehouse lighting calculation combines the math with the physical realities of the facility. Start with the required light at the task, account for losses, and then verify the fixture layout with photometrics. That process gives contractors and facility teams a specification they can install with confidence instead of a wattage guess they have to live with.
