Product Description

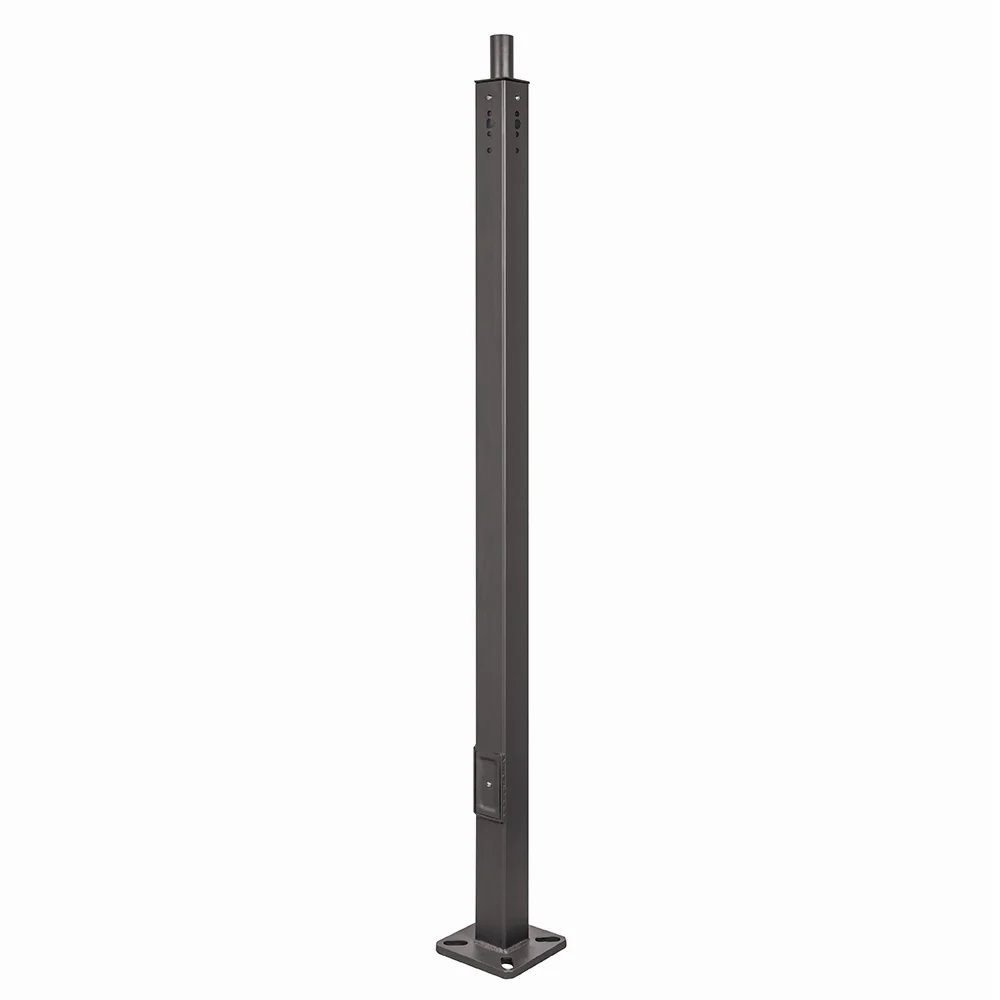

The WISDOM Series 10' Square Steel Poles are built from high-strength square tube and are available either side-drilled for arm-mounted area lighting luminaires or with tenon mounts for flood and post-top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 10 to 30 feet can be used based on selected luminaire application.
FINISH: Textured architectural bronze powder-coat finish, baked to ensure maximum paint adhesion, hardness, and durability.
11 Gauge Steel
ANCHOR BOLTS: WSD-BMS-S (J0Bolts included)
POSITION PLATE: WSD-SPP-D Flange (Plate included)
Flange Base Cover WSD-IBS4-D (Plate included)
HAND HOLE: Cast-iron-reinforced hand hole and cover with ground screw.
BASE COVER: Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over the pole base.
SURFACE TREATMENT: Hot-dip galvanizing. POLE LENGTH: Poles are available in standard lengths as shown in the order matrix. Poles can be custom cut to order. Consult factory.
SPECIFICATIONS: Conforms to ASTM-A 500 Grade B: Minimum Yield Strength of 46,000 PSI.
Shipping not included. Call for a shipping quote or place an order, and we will email you the shipping cost. We will ship when we get the ok to charge your card for shipping.
